Types of Inflatable Rubber Dams
Inflatable rubber dam, a long tubular-shaped fabric, has been widely used as a water control structure long before mid-1950s. As a seamless structure fixed to a reinforced concrete foundation using clamp plates and anchor bolts, the dam is inflated with air or water in designed height and pressure to raise the upstream water level.
Inflatable rubber dam is considered to be a low cost, versatile choice to create pondage, control flood, divert water for irrigation, raise existing dams, prevent dam overtopping as well as chemical spilling in the streams. To suit different constructions, various types of rubber dams can be supplied by our company as follows:
Air filled inflatable rubber dam

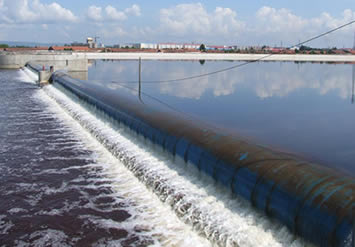

Water filled inflatable rubber dam

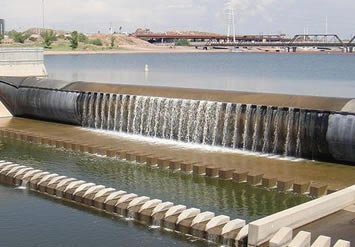

Bookend inflatable rubber dam
Shield type inflatable rubber dam
Material:
It is made of a multi-layer fabric comprising strength canvas and rubber layers which consist outer, middle and inner layers of rubber. The outer rubber layer features excellent resistance to abrasion, UV, heat and ozone. The middle and inner layers are designed to protect canvas and make these layers of materials more closely. The canvas acts as the force-bearing frame of the dam to provide great flexural stress resistance as well as superb adhesion function.
If you request, a layer of stainless steel mesh or ceramic chips can be embedded in the surface layer to protect the dam from fatal damages.
Physical properties:
| Item | Outer layer | Middle layer, Inner layer | Cover rubber sheet | |
|---|---|---|---|---|
| Tensile strength at break (min) | 14 Mpa | 12 Mpa | 6 Mpa | |
| Elongation at break (min) | 400% | 400% | 250% | |
| Permanent deformation at break (max) | 30% | 30% | 35% | |
| Hardness (shore A) | 55~65 | 50~60 | 55~65 | |
| Brittleness temperature (max) | -30°C | -30°C | -30°C | |
| Hot air aging (100°C*96h) | Tensile strength at break (min) | 12 Mpa | 10 Mpa | 5 Mpa |
| Elongation at break (min) | 300% | 300% | 200% | |
| Hot water aging (70°C*96h) | Tensile strength at break (min) | 12 Mpa | 10 Mpa | 5 Mpa |
| Elongation at break (min) | 300% | 300% | 200% | |
| Volume expansion ratio (max) | 15% | 15% | 15% | |
| Ozone aging: 10000pphm, temperature 40°C, stretching 20%, no cracking | 120 min | 120 min | 100 min | |
| Wear loss( Akron) (max) | 1.0 cm3/1.61km | 1.0 cm3/1.61km | 1.2 cm3/1.61km | |
Specification:
| Mode | Height | Inner pressure / outer pressure | Perimeter | Width of rubber sheet | coefficient |
|---|---|---|---|---|---|
| IRDH-1 | 1.0m | 1.60 | 3.19m | 1.30m | ＞6 |
| IRDH-2 | 1.0m | 1.00 | 2.88m | 0.60m | ＞8 |
| IRDH-3 | 1.5m | 1.50 | 4.88m | 2.15m | ＞6 |
| IRDH-4 | 1.5m | 1.00 | 4.32m | 0.90m | ＞8 |
| IRDH-5 | 2.0m | 1.50 | 6.51m | 2.87m | ＞6 |
| IRDH-6 | 2.0m | 1.00 | 5.76m | 1.20m | ＞8 |
| IRDH-7 | 2.5m | 1.40 | 8.40m | 4.04m | ＞6 |
| IRDH-8 | 2.5m | 1.00 | 7.20m | 1.50m | ＞8 |
| IRDH-9 | 3.0m | 1.35 | 10.30m | 5.20m | ＞6 |
| IRDH-10 | 3.0m | 0.90 | 8.66m | 1.92m | ＞8 |
| IRDH-11 | 3.5m | 1.30 | 12.35m | 6.58m | ＞6 |
| IRDH-12 | 3.5m | 0.90 | 10.11m | 2.24m | ＞8 |
| IRDH-13 | 4.0m | 1.25 | 14.62m | 8.25m | ＞7 |
| IRDH-14 | 4.0m | 0.90 | 11.55m | 2.56m | ＞8 |
| IRDH-15 | 4.5m | 1.25 | 16.45m | 9.28m | ＞7 |
| IRDH-16 | 5.0m | 1.20 | 19.18m | 11.53m | ＞8 |
| IRDH-17 | 5.5m | 1.20 | 21.10m | 12.68m | ＞8 |
| IRDH-18 | 6.0m | 1.20 | 23.02m | 13.83m | ＞8 |
