Accessories for Fixing Inflatable Rubber Dams

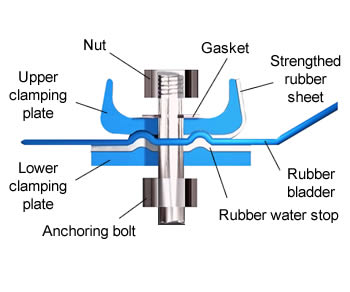

Normally, we fasten our inflatable rubber dams to concrete foundations firmly in conjunction with clamping plates and anchor bolts as shown in the picture.
Bolt fixing
Instruction:
- Unroll the rubber bladder onto the concrete foundations.
- Punch holes on rubber dams for anchor bolts.
- Install and fasten spacer pipes.
- Concrete placing.
- Fixed the rubber bladder to buried anchor bolts.
- Fasten the rubber bladder using upper clamping plates.
- Tight the anchor bolts.
- Complete commissioning tests.
Features:
- Anti-rust coated to extend its service life.
- Exquisitely casted complying with high standard.
- High holding strength for higher safety.
- Easy to install.
- Lower price.

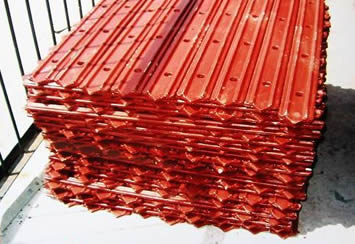

Clamping plates

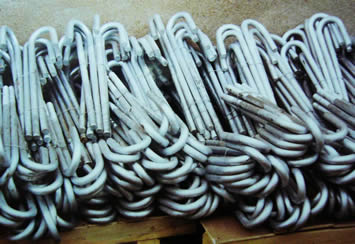

Anchor bolts
Specification:
| Type | Upper clamping plate | Lower clamping plate | Bolt | Dam height |
|---|---|---|---|---|
| RDF-1 | 996 × 110 × 34mm | 996 × 120 × 15mm | M24 × 600mm | Less than 2m |
| RDF-2 | 996 × 120 × 40mm | 996 × 130 × 15mm | M27 × 600mm | 2.5m |
| RDF-3 | 996 × 130 × 44mm | 996 × 140 × 16mm | M27 × 700mm | 3m |
| RDF-4 | 996 × 140 × 48mm | 996 × 150 × 16mm | M30 × 750mm | 3.5m |
| RDF-5 | 996 × 155 × 50mm | 996 × 170 × 16mm | M30 × 800mm | 4m |
| RDF-6 | 996 × 165 × 58mm | 996 × 180 × 16mm | M33 × 850mm | 4.5m |
| RDF-7 | 996 × 187 × 62mm | 996 × 200 × 19mm | M36 × 950mm | 5m |
| RDF-8 | 996 × 200 × 80mm | 996 × 210 × 20mm | M42 × 1100mm | 5.5m |
| RDF-9 | 996 × 210 × 115mm | 996 × 220 × 23mm | M42 × 1100mm | 6m |
